SPRINGER FORKS FOR HARLEY-DAVIDSON

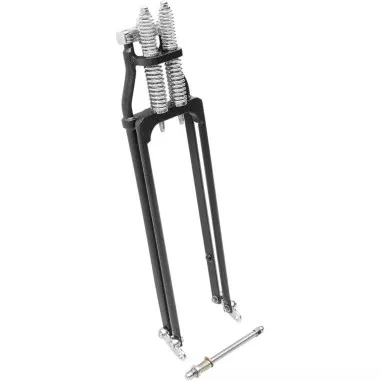

DRAG SPECIALTIES SPRINGER FORKS FOR HARLEY-DAVIDSON Black Springer Fork Economical alternative to a shock dampened-type Springer

Fully assembled with an in-line top bracket without a built-in rake

The standard length Springer (31″ measured from top bearing to the axle) is comparable to a standard-length FXST front end

1″ OD steering stem designed for Timken® type bearings

Both rear legs are threaded for right or left brakes

The 3/4″ OD axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)

Measures 91/4″ between Rockers

Riser mounts are on 43/4″ centers and threaded 1/2″-20

Requires 84-99 wheel (compatible with 3/4​” OD axle)

These Springers are measured from the bottom of the top tree to the center of the axle
