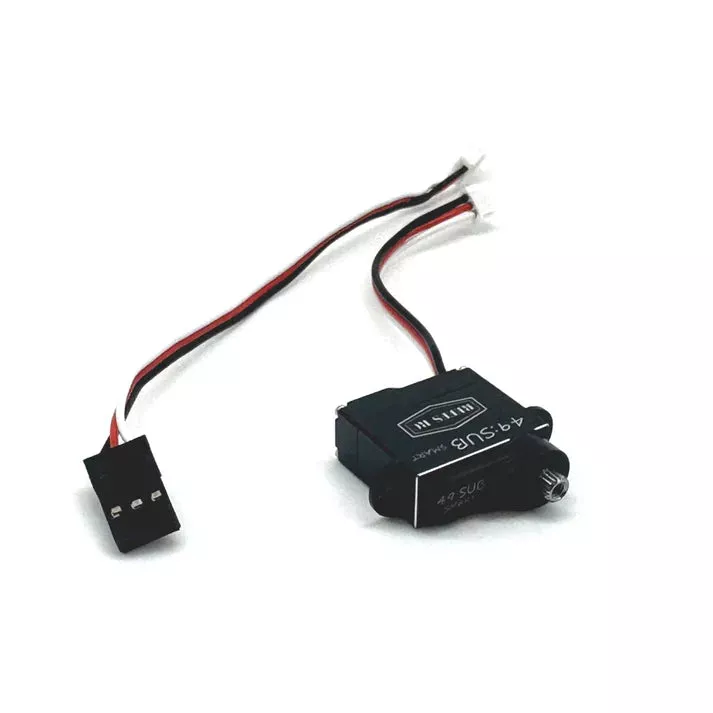

The 49Sub Micro Servo is a compact, high-torque, high-speed servo designed for small-scale applications requiring precision and durability. Featuring metal gears, military-grade construction, PWM control, and SMART chip technology, it delivers exceptional performance in an ultra-lightweight form factor. Fully programmable with REEFS LINK (optional), it can also be configured as a winch.
Features:
High-torque, high-speed micro servo/winch Military-grade construction Pulse Width Modulation control SMART Chip Technology Programmable via REEFS LINK (optional) Metal gears with CNC aluminum casing Ultra-lightweight at just 7g Voltage range: 4.8V8.
Specifications:
Torque: 37oz (2.7kg) @6.0V / 43oz (3.2kg) @7.4V / 49oz (3.5kg) @8.4V Speed: 0.075s @6.0V / 0.058s @7.4V / 0.05s @8.4V per 60 Dimensions (LWH): 20817.8 mm Weight: 0.24oz (7g) Operating Travel: 180 10 Mechanical Angle: No limit Temperature Range: 15C to +70C Internal: Metal gears, sealed bearing Motor Drive: IC Drive Spline: 20T (4.0mm) Dead Band Width: 2s BEC: Not required (recommended for max performance)
