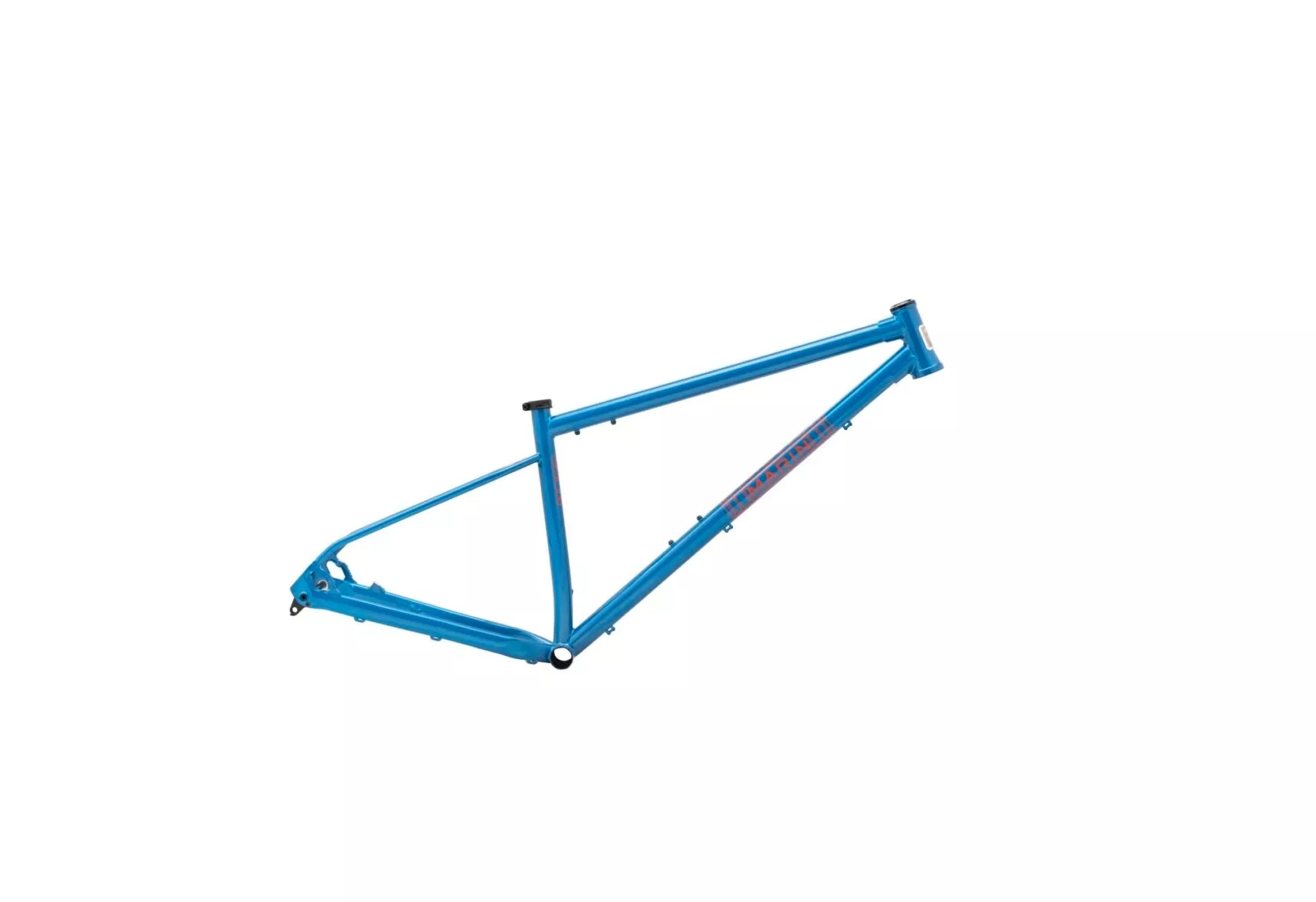

The El Roy is the ultimate aggressive steel hardtail that will get you to the top, and then really shine on the way down, with a spicy mix of progressive geometry and supple steel.
Features:
Wheelsize: 29″
Frame: Chromoly Steel
Sizes: Regular, Grande
Specifications
| Frame | Series 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, PM Brake Mounts |
|---|---|
| Headset | FSA Orbit 40 No.42 ACB |
| Seatclamp | Marin 33.3mm OD |
Size Guide
| Size | Rider Height |
|---|---|
| Regular | 5’5″ – 5’10” |
| Grande | 5’10” – 6’4″ |
Geometry
| Regular | Grande | |
|---|---|---|
| Stack | 645 | 645 |
| Reach | 480 | 510 |
| Headtube Angle | 63 | 63 |
| Headtube Length | 120 | 120 |
| Seattube Angle | 78 | 78 |
| Seattube Length | 420 | 430 |
| Toptube Effective | 617 | 647 |
| BB Height | 318 | 318 |
| BB Drop | 65 | 65 |
| Chainstay Length | 435 | 435 |
| Wheelbase | 1252 | 1282 |
| Standover Height | 735 | 743 |
| Fork Offset | 44 | 44 |
- Seatpost Diameter: 30.9mm
- Handlebar Width: 800mm
- Stem Length: 35mm
- Crank Length: 170mm
